Critical Minerals: Why Processing Beats Mining for Investor Returns

The IEA projects lithium demand must increase eightfold by 2040 to meet climate targets. The constraint is not ore in the ground. It is the narrow processing corridor that converts raw lithium concentrate and rare earth mixed oxides into battery-grade chemicals and separated magnet materials, a corridor that remains overwhelmingly concentrated in a single country.

A joint report from Duke University and the University of Cape Town, published in August 2026, identifies specific midstream processing technologies by name, maps each to a technology readiness level, and specifies the financing instruments appropriate to each stage. Independent assessments from the IEA and UNCTAD, also published this year, confirm the same concentration thesis from different analytical angles. Critical mineral investing is increasingly defined not by which deposits are discovered but by which processing chokepoints investors can access before consensus pricing takes hold.

What follows maps three commercially credible technology entry points, explains where each sits on the readiness scale, and specifies what engagement looks like at each stage. The output is a technology-by-technology framework, not a thesis statement.

The mine is not the chokepoint

Capital has poured into critical mineral exploration and extraction for years. The bottleneck it was meant to solve sits further downstream.

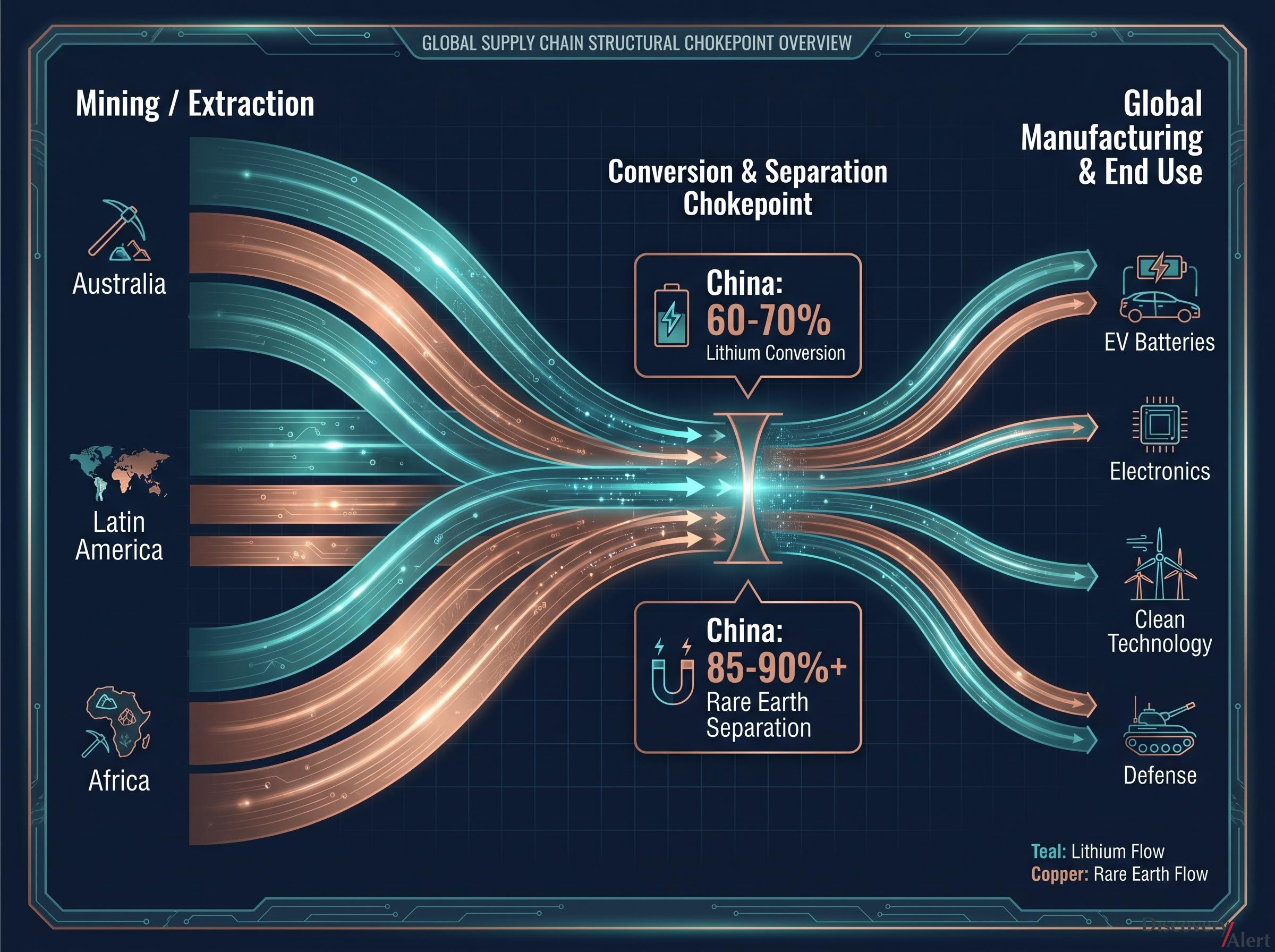

The IEA’s Global Critical Minerals Outlook 2026 finds that processing and refining capacity is “more concentrated and slower to scale” than mining capacity. China controls an estimated 60-70% of global lithium conversion capacity and over 85-90% of global rare earth separation capacity, even as mining itself is increasingly distributed across Australia, Latin America, and Africa. The economic rent in these value chains is realised at conversion, separation, and refining, not at the pit.

UNCTAD’s Global Trade Update (June 2026) characterises the concentration of critical mineral supply as “especially acute” at the processing and refining stages, where higher-value activities take place.

The table below illustrates the structural gap between mining diversity and processing concentration.

Investors deploying capital primarily at the mining stage are capturing a structurally shrinking share of value. Understanding where the chokepoint sits is the prerequisite for allocating into the stage where leverage and margin actually reside.

The IEA’s eightfold demand projection rests on converging end-use sectors, and the lithium demand drivers across electric vehicles, grid-scale storage, and robotics each carry distinct timing profiles that shape when processing capacity constraints will bite hardest.

What midstream processing actually does, and why it is so hard to replicate

Between mine output and factory input sit three distinct processing steps that determine whether a raw mineral becomes a usable industrial material:

1. Conversion of mineral concentrate into a chemical intermediate (e.g., spodumene concentrate into lithium carbonate or hydroxide)
2. Separation of individual elements from mixed feedstocks (e.g., isolating neodymium and praseodymium from mixed rare earth oxides)
3. Refining to battery-grade or magnet-grade purity specifications required by downstream manufacturers

Each step involves specialised chemistry, high temperatures, or chemical reagents that demand capital-intensive infrastructure and hard-won process expertise.

Why conventional processing is hard to replicate outside China

Conventional rare earth separation relies on solvent extraction, a process requiring large volumes of organic solvents, complex waste management systems, and stringent environmental permitting. China has accumulated decades of optimisation in solvent extraction that cannot be compressed by capital alone. Almost all commercially significant rare earth separation capacity outside China remains at pilot or demonstration stage.

For hard-rock lithium, the conventional calcination step heats alpha-spodumene to 1,000-1,100 degrees Celsius in rotary kilns, accounting for approximately 50% of total refinery process energy. Conventional brine evaporation recovers only 30-50% of available lithium over 12-24 months. Both approaches are capital-intensive and permitting-heavy.

Why this creates the opening for alternative technologies

Technologies designed from the ground up to avoid organic solvents, reduce operating temperatures, or use selective membranes sidestep the specific barriers that make conventional replication so slow. They do not need to match China’s decades of solvent-extraction expertise because they bypass the process entirely. Three such technology categories are now at readiness levels that warrant commercial engagement.

Direct lithium extraction is the brine sector’s most actionable near-term bet

The headline numbers are compelling. Direct Lithium Extraction (DLE) technologies recover more than 90% of available lithium within hours, compared with conventional evaporation’s 30-50% over 12-24 months.

The investment question, however, is not whether DLE outperforms evaporation in theory. It is whether a specific brine supports DLE deployment in practice. DLE performance is highly sensitive to brine chemistry, particularly the magnesium-to-lithium (Mg/Li) ratio, which determines how selectively a sorbent or membrane can extract lithium from the surrounding solution.

Research from Duke University (Williams et al. 2026) found that Mg/Li ratios in Lithium Triangle brines range from less than 1 to over 500, illustrating the vast variability investors must account for before committing capital.

Most DLE flowsheets still require a downstream concentration step. Due diligence must therefore begin with detailed brine characterisation rather than headline recovery figures.

At TRL 5-7, the appropriate financing instruments include equity stakes in technology developers, offtake-linked pilot support, and co-development agreements that secure preferential access terms. Investors who wait for full commercial maturity are projected to face worse terms, because processing partnerships in this space are allocated early and rarely return to the market on equivalent pricing.

Lower-temperature spodumene roasting and rare earth ion exchange offer the hard-rock and separation plays

Two additional technology categories attack the highest-cost or highest-concentration stage of their respective processing chains. The shared logic is the same: both replace the specific bottleneck step that has kept Western capacity from scaling.

Lower-temperature spodumene roasting

Sulphate and chloride roasting routes offer a meaningful alternative to conventional calcination by targeting the kiln step that dominates hard-rock lithium refining economics. Key attributes include:

• Substantially reduced operating temperatures compared with conventional calcination at 1,000-1,100 degrees Celsius
• Ability to process lower-grade feedstocks and tailings that conventional acid roasting cannot handle
• Alignment with decarbonisation targets, given that the kiln step accounts for approximately 50% of total refinery process energy
• Current technology readiness level: TRL 6-7 (Duke-UCT)

Mangrove Lithium’s membrane electrolysis process offers a complementary downstream step, converting lithium chloride directly to lithium hydroxide while cutting soda ash and lime consumption. Together, these innovations address both the energy-intensive front end and the reagent-heavy back end of hard-rock lithium processing.

Continuous and solvent-free rare earth separation

For rare earths, the structural barrier is not temperature but chemistry: the organic solvents, waste streams, and permitting burdens of conventional solvent extraction. Two alternative approaches are gaining traction:

• Continuous ion-exchange separation, which could improve throughput and selectivity relative to batch solvent extraction while reducing chemical handling requirements
• Solvent-free separation processes, with REEtec (Norway) cited as an example company that avoids the organic solvents used in conventional extraction entirely
• Current technology readiness level for alternative separation: TRL 5-7 (Duke-UCT)

Both technologies are capital-hungry scale-up plays where technical risk is largely resolved but commercial financing remains the binding constraint. Investors who can provide equity, offtake support, or co-development capital at this stage are positioned to secure access terms that later entrants are unlikely to match.

China’s rare earth strategy extends beyond production dominance to active management of downstream access, with explicit warnings against Western stockpiling signalling that Beijing views processing concentration as a sovereign instrument rather than a commercial position.

When Magnet Recycling Becomes a Volume Story

Neodymium-iron-boron (NdFeB) magnet recycling via hydrogen processing is technically viable. Companies including HyProMag (UK) and Cyclic Materials (Canada) are actively operating in the space. The technology works.

The constraint is feedstock, not process.

Most first-generation EVs and wind turbines using rare earth permanent magnets have not yet reached end-of-life in commercially significant volumes. The inflection point is projected around 2030.

Three conditions will drive that volume inflection:

• The ageing profile of first-generation EV fleets reaching battery and motor replacement cycles
• Wind turbine decommissioning cycles for installations from the early 2010s
• Regulatory collection mandates in the EU and other jurisdictions that are still being finalised

Government-backed magnet capacity programs, such as India’s production-linked incentive scheme targeting rare earth permanent magnets, are creating downstream demand anchors that could accelerate the commercial timeline for both alternative separation technologies and NdFeB recycling infrastructure.

The correct capital positioning today is venture and growth equity focused on building collection infrastructure and processing capacity ahead of the volume wave. This is not a project-finance or offtake-backed debt opportunity at present. Investors who misclassify recycling as a near-term deployment play will produce misaligned capital structures and timeline expectations.

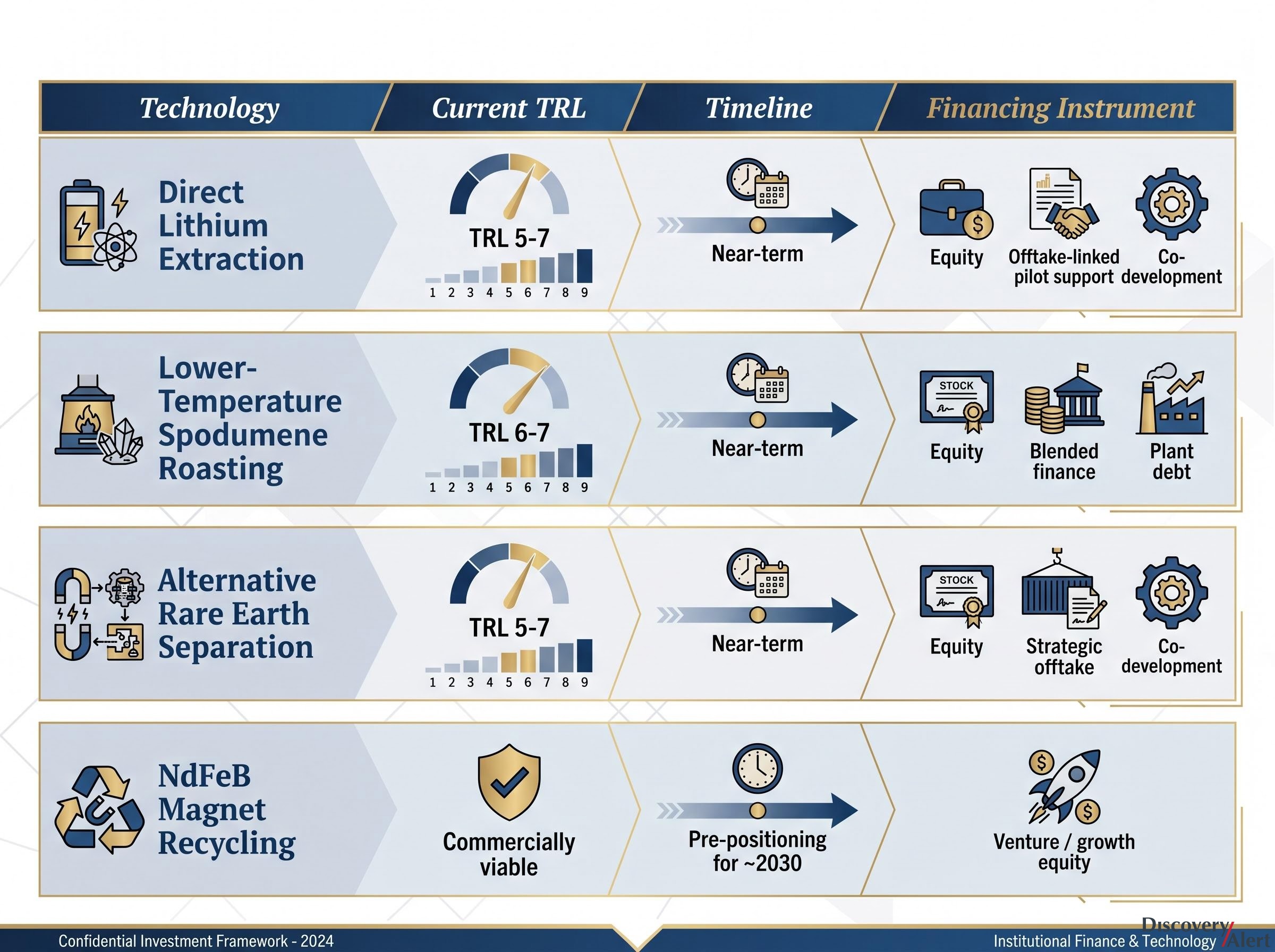

Staged Entry: Capturing Midstream Processing Value at Different TRLs

The Duke-UCT report identifies a pattern across failed or delayed Western critical mineral projects: the absence of secured processing partnerships at the project development stage, well ahead of financial close.

The Duke-UCT joint report recommends identifying and committing to specific processing partnerships during project development, not after financial close, as a central requirement for project viability.

Investors who wait for TRL 8-9 maturity are projected to face worse terms on technology access and pricing, because processing chokepoints are few, allocated early, and rarely return to the market on equivalent terms. The financing instrument must match the development stage.

US and allied critical minerals industrial policy as of 2026 is geared toward exactly the TRL 5-7 to TRL 8 transition, via grants for battery materials processing, loan guarantees, and offtake support. The IEA’s eightfold lithium demand projection and doubling of magnet rare earth demand by 2040 provide the demand floor underpinning the case.

The decisive decade for critical mineral value is being settled in the plant, not the pit

DLE, lower-temperature roasting, and alternative rare earth separation are the practical instruments for repositioning capital from the extraction layer to the processing layer. The convergence of IEA, UNCTAD, and Duke-UCT analyses on the same bottleneck is not a cyclical signal. It points toward a structural shift in where value is captured across critical mineral supply chains.

Investors who engage at current readiness levels are paying technology-risk prices for what the next decade is likely to price as infrastructure-level chokepoints. The processing corridor between mine and factory is where margin, leverage, and strategic influence are concentrated. Capital that arrives after commercial maturity is established will pay consensus-level prices for access to a structurally scarce set of assets.
